Introduction

Geotextiles are one of the largest volume applications for nonwoven fabric globally — second only to hygiene in terms of total tonnage consumed. Every major infrastructure project — road construction, railway embankments, coastal protection, drainage channels, retaining walls, and landfill liners — relies on geotextile fabric to separate, filter, drain, reinforce, or protect the surrounding soil.

Nonwoven polypropylene spunbond and needle-punched geotextile fabrics are the workhorses of civil engineering and infrastructure projects worldwide. Understanding the difference between geotextile fabric types, how to specify the correct GSM and function class for each application, and how to evaluate a geotextile nonwoven fabric supplier is essential knowledge for project engineers, procurement managers, and distributors.

This guide covers geotextile fabric functions, construction types, GSM selection for road, drainage and erosion applications, key performance tests, and sourcing from Pakistan.

For a complete overview of all Textile & Industrial grade nonwoven fabrics we offer, see: Textile & Industrial Nonwoven Fabric — Full Product Range

What Is Nonwoven Geotextile Fabric?

Geotextile fabric is a permeable textile material placed in contact with soil to perform one or more of five engineering functions: separation, filtration, drainage, reinforcement, or erosion control. Nonwoven geotextile fabric — as distinguished from woven geotextile — is manufactured either by the spunbond process (continuous filaments thermally bonded) or by the needle-punch process (staple fibers mechanically entangled using barbed needles).

Construction type	Process	Structure	Strength	Permeability	Best function
Spunbond nonwoven	Continuous PP filament + thermal bond	Flat, uniform	Moderate	High — isotropic flow	Filtration, drainage separation
Needle-punched nonwoven	Staple fibre + needle entanglement	Lofted, three-dimensional	High — multi-directional	Very high — in-plane flow	Drainage, erosion control, reinforcement
Woven geotextile	PP or PET woven tapes	Grid-like	Very high — tensile	Moderate — through-plane only	Reinforcement, load distribution

For most road, drainage and erosion applications, nonwoven geotextile (either spunbond or needle-punched PP) is the specified fabric type because it provides isotropic permeability — allowing water to flow through the fabric in any direction — combined with the filtration efficiency needed to retain soil particles while permitting free water drainage.

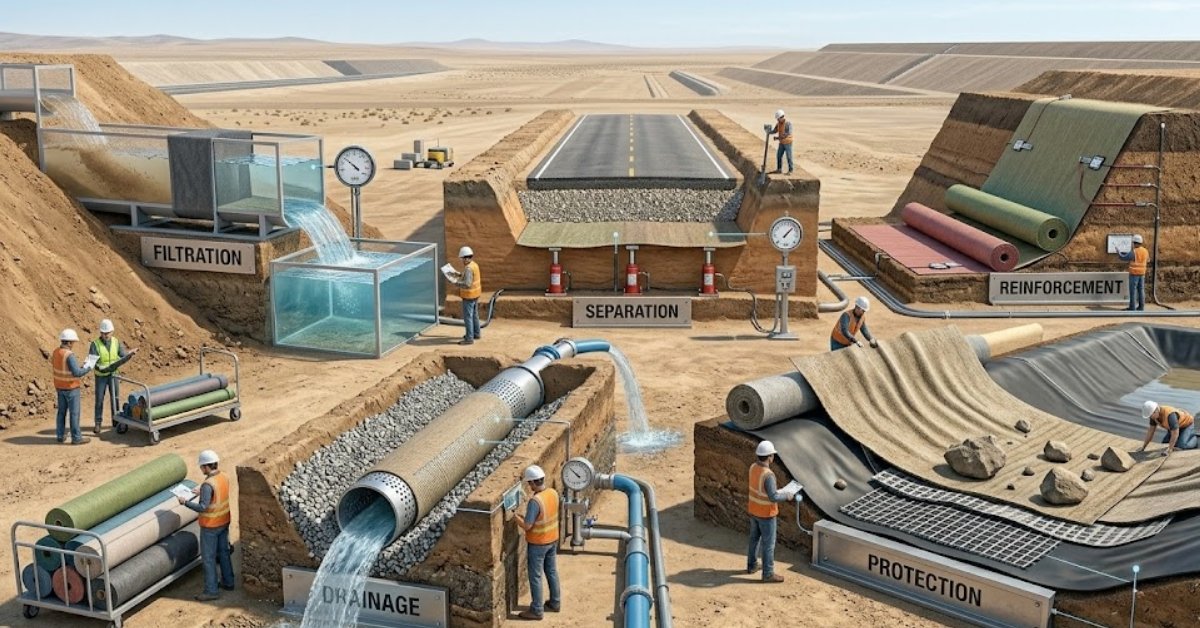

The Five Functions of Geotextile Nonwoven Fabric

1. Separation

Placed between two dissimilar soil layers (e.g., sub-base aggregate over soft subgrade clay), the geotextile prevents the two materials from mixing under traffic or loading. Without separation, aggregate sub-base gradually becomes contaminated with fine clay particles, losing its load-bearing capacity and requiring costly replacement. A 100–150 GSM spunbond geotextile beneath a road sub-base can double the effective service life of the pavement structure.

2. Filtration

The geotextile acts as a filter medium — allowing water to pass freely while retaining soil particles and preventing piping (the migration of fine particles that can destabilise a slope or embankment). The key parameter is Apparent Opening Size (AOS / O90), which must be matched to the particle size distribution of the adjacent soil to prevent either clogging (if too tight) or piping (if too open).

3. Drainage

Needle-punched nonwoven geotextile has significant in-plane transmissivity — water can travel laterally through the fabric to a drainage outlet. This function is used in slope drainage, retaining wall drainage layers, and pavement edge drains to intercept and redirect groundwater away from load-bearing structures.

4. Reinforcement

High-tensile geotextile fabric increases the load-bearing capacity of soft subgrades by distributing point loads laterally. While woven geotextiles generally deliver higher tensile strength for pure reinforcement applications, heavyweight needle-punched nonwovens (200–400 GSM) are used where combined reinforcement and drainage functions are needed simultaneously.

5. Erosion control

Geotextile laid on slopes, channel banks or coastal embankments protects the soil surface from erosive forces — rainfall impact, surface water flow, and wave action — by covering the soil while allowing vegetation to establish. UV-stabilised PP nonwoven is specified for permanent erosion control applications.

GSM Selection Guide by Application

Application	GSM range	Primary function	Key spec
Road sub-base separation (light traffic)	80 – 120 GSM	Separation + filtration	AOS O90 < 150 micron; CBR puncture > 1.0 kN
Road sub-base separation (heavy duty)	120 – 200 GSM	Separation + reinforcement	Tensile strength > 10 kN/m; elongation < 50%
French drain / trench drain wrapping	100 – 150 GSM	Filtration + drainage	Permittivity > 0.3 s-1; AOS matched to soil
Slope erosion control	80 – 150 GSM	Erosion protection	UV-stabilised PP; wide roll width for coverage
Retaining wall drainage layer	150 – 250 GSM	In-plane drainage	High transmissivity needle-punched fabric
Coastal / riverbank protection	200 – 400 GSM	Erosion + reinforcement	High puncture resistance; UV-stabilised
Landfill drainage / protection layer	200 – 500 GSM	Protection of geomembrane	High CBR puncture resistance > 4.5 kN
Agricultural drainage (subsurface)	80 – 120 GSM	Filtration around drainage pipe	AOS suited to local soil; high flow rate

To understand how GSM affects puncture resistance and flow rate,
see: What Is GSM in Nonwoven Fabric? GSM Meaning, Chart & How to Choose

Key Performance Tests for Geotextile Nonwoven Fabric

When specifying or procuring geotextile nonwoven fabric, the following tests are standard requirements for most civil engineering projects:

Mass per unit area / GSM (EN ISO 9864 / ASTM D5261): the fundamental specification parameter. Request per-roll certificates showing actual GSM with ±10% tolerance conformance.
Tensile strength and elongation (EN ISO 10319 / ASTM D4595): wide-width strip tensile test. Strength expressed in kN/m; elongation at break is equally important — high elongation can cause unacceptable deformation under load.
CBR puncture resistance (EN ISO 12236 / ASTM D6241): resistance to puncture by a standard probe under a compressive load. Critical for geotextiles installed under sharp angular aggregate, where puncture failure would immediately compromise separation and filtration function.
Apparent Opening Size / AOS (EN ISO 12956 / ASTM D4751): determines what particle sizes the fabric will retain. Must be specified against the D85 of the adjacent soil to prevent piping failure.
Permittivity / water flow rate (EN ISO 11058 / ASTM D4491): measures the volume of water passing through the fabric under a unit head of pressure. Critical for filtration and drainage applications.
UV resistance (EN 12224 / ASTM D4355): for any geotextile used in applications with exposure to sunlight before or during installation, UV stabilisation and retained strength after 500 hours UV exposure must be specified.

Nonwoven vs Woven Geotextile — When to Specify Each

Criteria	Nonwoven geotextile	Woven geotextile
Filtration	Excellent — uniform pore structure, high AOS control	Poor — large open apertures allow particle migration
Drainage (in-plane)	Good (needle-punch) to moderate (spunbond)	Very low — fibres lie flat, no in-plane drainage path
Tensile strength	Moderate — suitable for separation, some reinforcement	High — the preferred choice for pure reinforcement
Elongation at break	High (30–80%) — conforms to irregular surfaces	Low (10–30%) — less conformability on rough subgrade
Cost (per m2)	Lower — faster production process	Higher — slower weaving process
Recommended for	Filtration, drainage, separation, erosion control	Reinforcement, load bearing, slope stability

To compare spunbond, SMS and SMMS constructions used in technical fabrics,
see: SMS vs SMMS Nonwoven Fabric — What’s the Difference?

Sourcing Geotextile Nonwoven Fabric from Olefins, Pakistan

Olefins Private Limited, Karachi, manufactures polypropylene spunbond nonwoven fabric in the GSM ranges and widths required for geotextile separation and filtration applications:

PP spunbond nonwoven: 80–200 GSM for road sub-base separation, drainage pipe wrapping, and light erosion control
UV-stabilised treatment: available on request for outdoor geotextile applications with sun exposure during or after installation
Wide rolls: up to 3.2 m wide for efficient coverage of large civil engineering project areas
Custom GSM: production to project-specified GSM within our manufacturing range, with lot-level test reports
OEM supply: bulk roll supply for geotextile product distributors, civil engineering contractors and infrastructure project direct purchasers
Export from Karachi: 7–10 days to UAE/GCC; 10–14 days to Bangladesh and East Africa

Note on needle-punched geotextile: For heavyweight needle-punched nonwoven geotextile applications (drainage layers, coastal protection, 200–500 GSM retaining wall fabric), Olefins can connect buyers with specialist needle-punch manufacturing partners in our supply network. Contact info@olefins.net with your specification.

Frequently Asked Questions — Geotextile Nonwoven Fabric

What is the difference between nonwoven and woven geotextile?

Nonwoven geotextile (spunbond or needle-punched PP) excels at filtration, drainage and separation due to its random fiber orientation and high permeability. Woven geotextile provides higher tensile strength for reinforcement applications. For most road, drainage and erosion applications, nonwoven geotextile is specified because filtration and drainage performance are more critical than raw tensile strength.

What GSM geotextile fabric is used for roads?

Road sub-base separation typically uses 80–150 GSM spunbond PP nonwoven for light to moderate traffic roads. Heavy-duty road and highway applications use 120–200 GSM to withstand the higher puncture and installation stresses associated with compaction of coarse aggregate over the geotextile.

Does geotextile fabric need to be UV stabilised?

Yes, for any application where the fabric will be exposed to sunlight — either during storage on-site, during installation, or in permanent above-ground applications such as erosion control mats. PP fibre degrades rapidly under UV exposure without stabilisation. Specify UV-stabilised PP geotextile and request a UV resistance test report (EN 12224 or ASTM D4355) from the supplier.
